120mm SEG LED Lightbox Display – Modular Trade Show Booth System
120mm SEG LED Lightbox Display – Modular Trade Show Booth System
Click here to submit your custom design & vector files.
Custom-configured exhibition system for corporate branding, trade shows, scientific conferences, product launches, and branded event environments. Please request a quote with your required booth width, graphic requirements, quantity, destination, and event date.
120mm Modular SEG LED Lightbox Display System

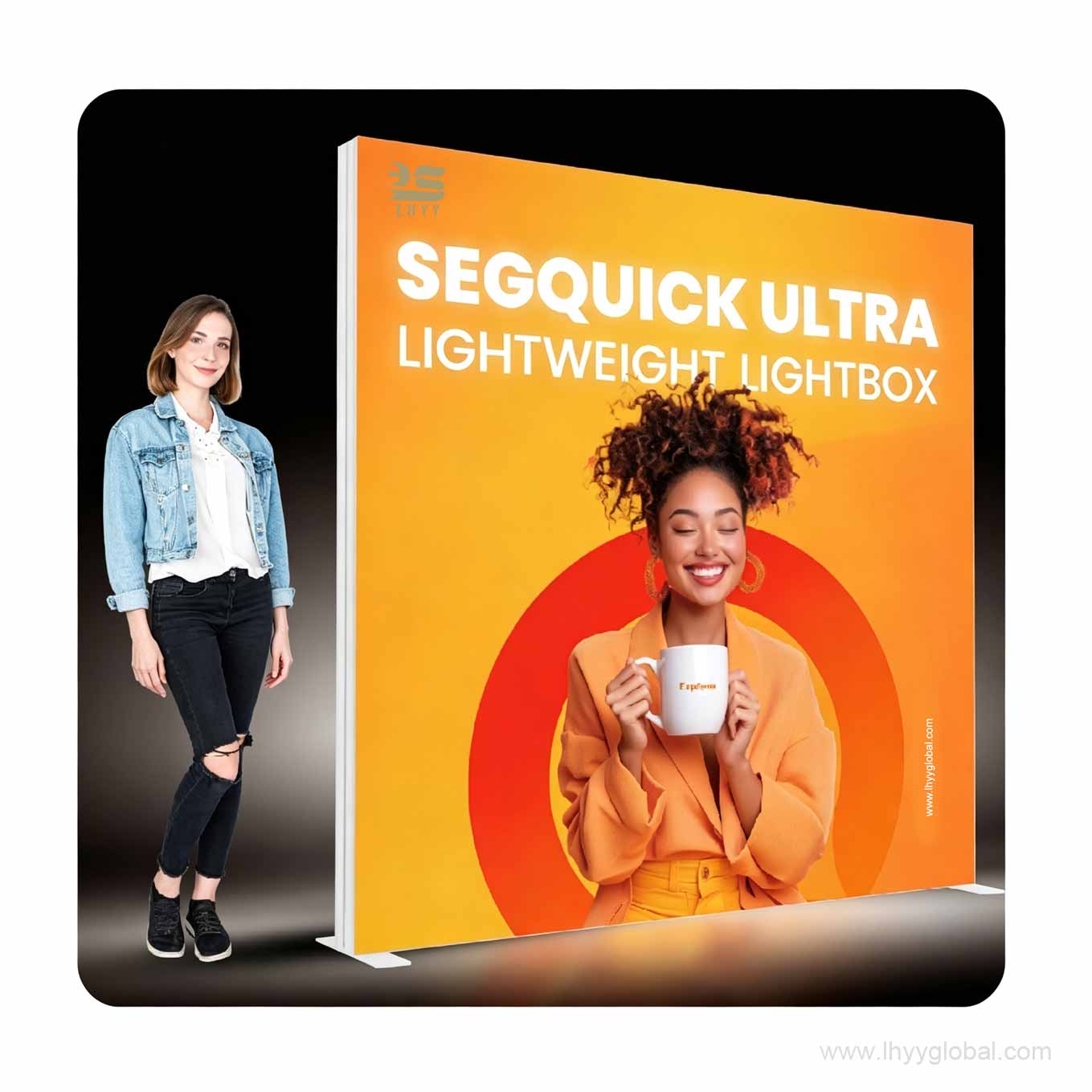

Create a bright, professional exhibition backwall or modular booth with this 120mm SEG LED lightbox system. The aluminum frame combines custom-printed silicone-edge fabric graphics, integrated LED backlighting, and modular frame sections for flexible trade show configurations.
The system is designed for repeated corporate event use, with tool-free frame connections, replaceable branded graphic panels, and protective transport packaging. It is suitable for exhibition booths, conference backwalls, product launch environments, distributor events, and corporate display areas.
Important: This is a custom-configured B2B exhibition product. Final pricing, included components, electrical configuration, packaging, production schedule, and freight are confirmed according to the selected booth layout and delivery destination.
Key Features

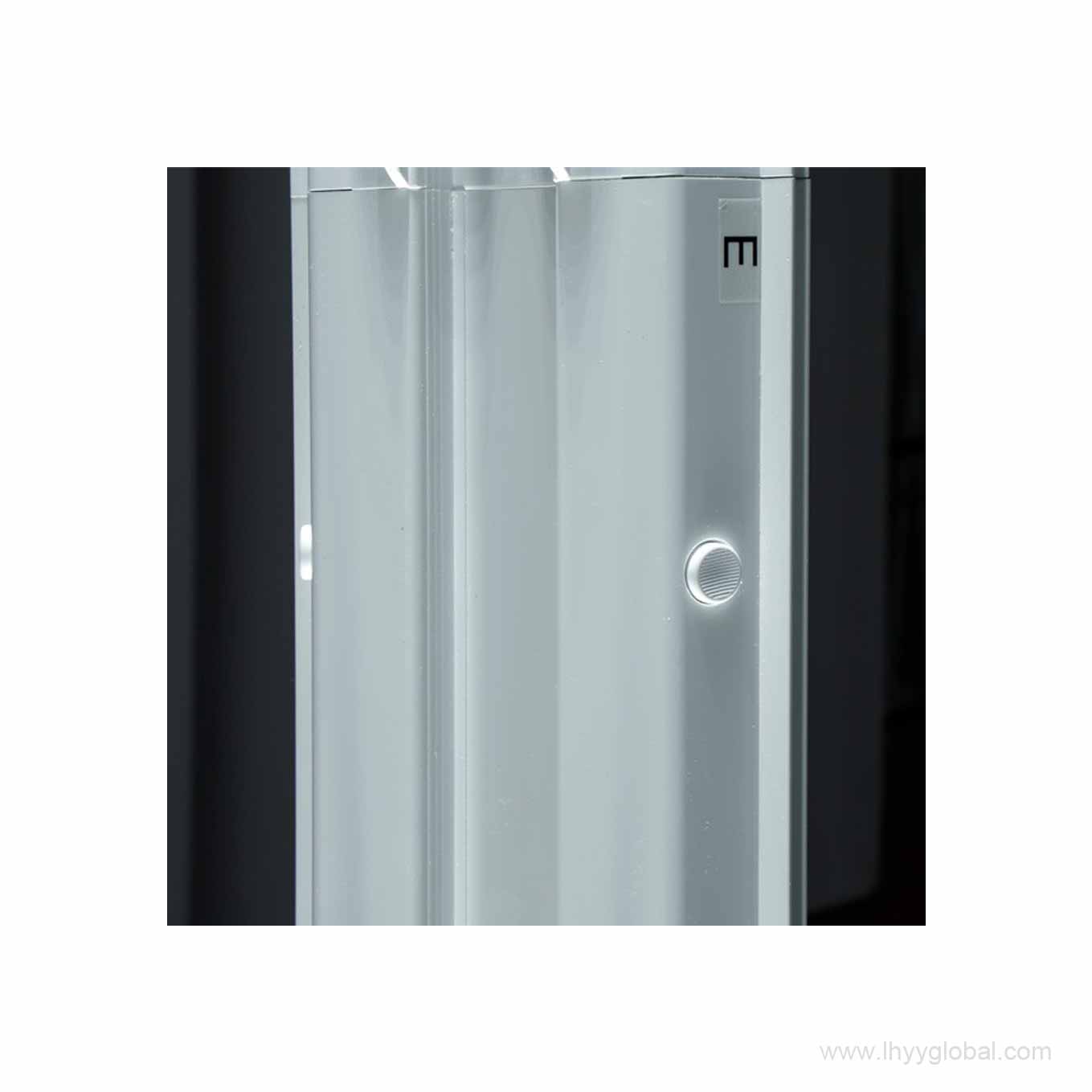

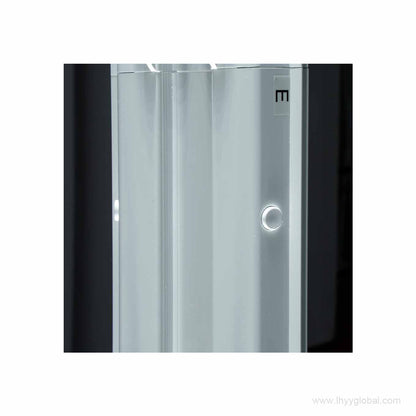

- 120mm Aluminum Lightbox Frame: The deep aluminum profile supports an illuminated exhibition display while maintaining a clean, professional appearance.

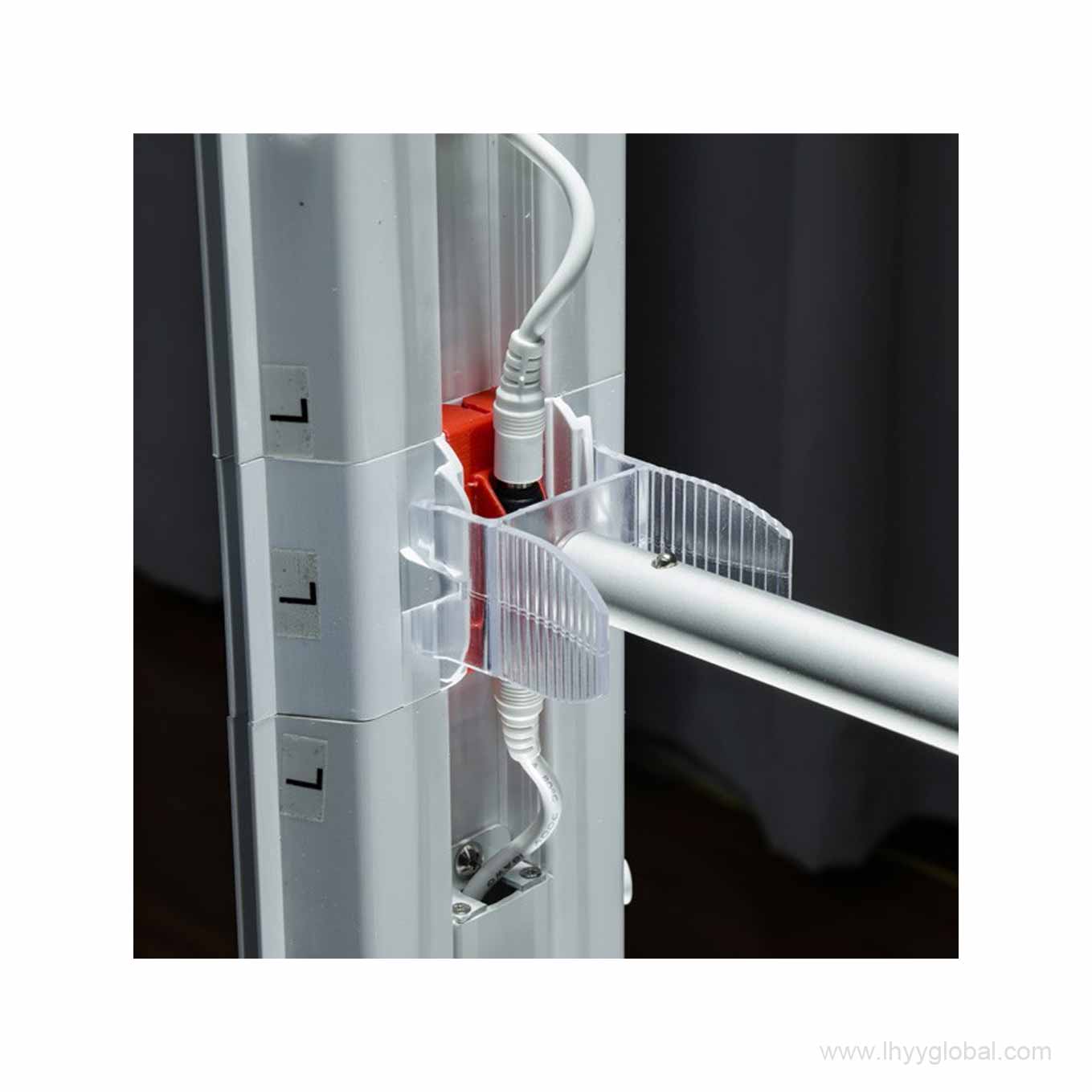

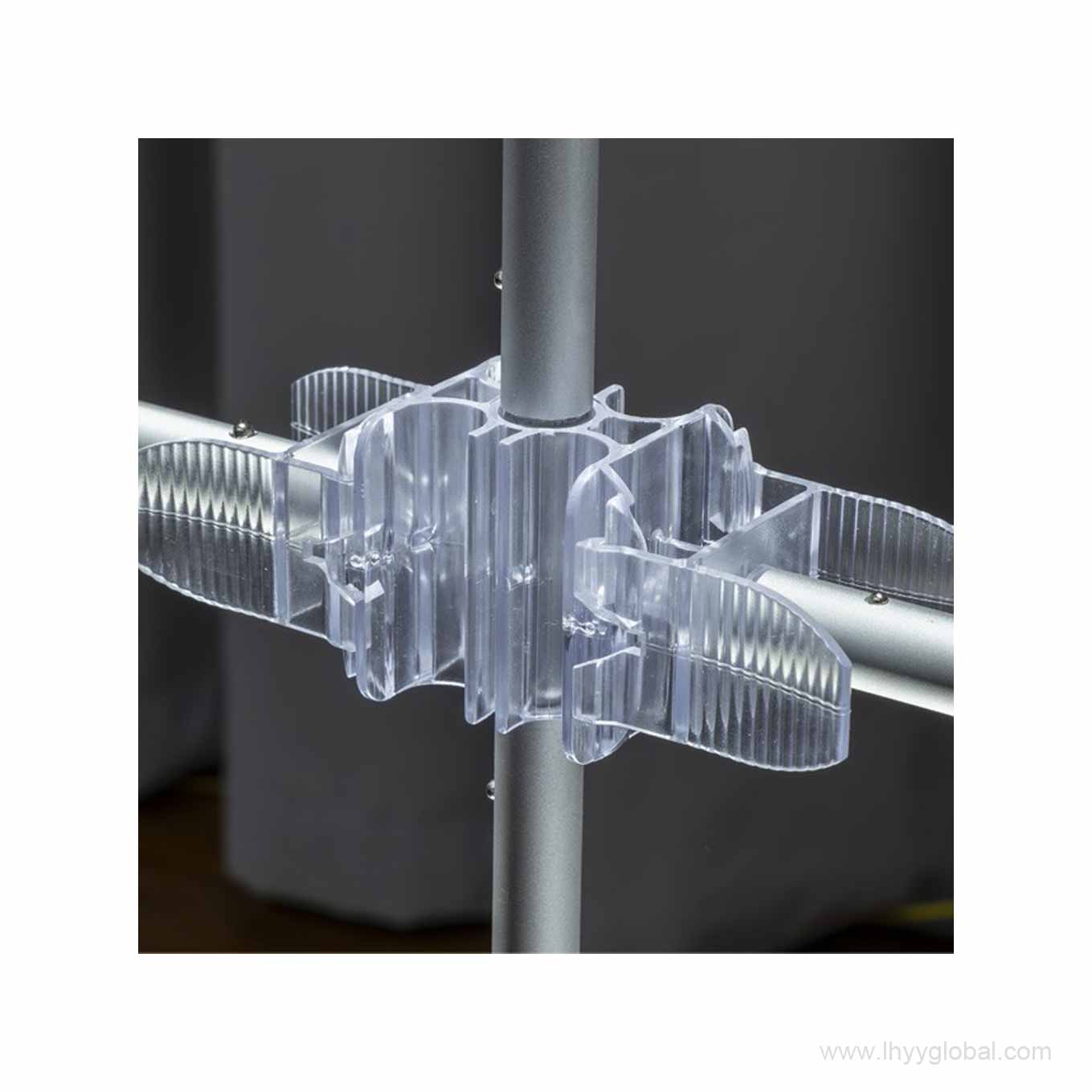

- Tool-Free Frame Connections: Quick-lock connectors allow the main frame sections to be joined without drills or loose installation screws. Actual setup time depends on the selected layout and installer experience.
- Recessed Connection Hardware: Internal connection components help maintain a flush exterior profile and reduce exposed hardware during setup. Assembly instructions should always be followed.

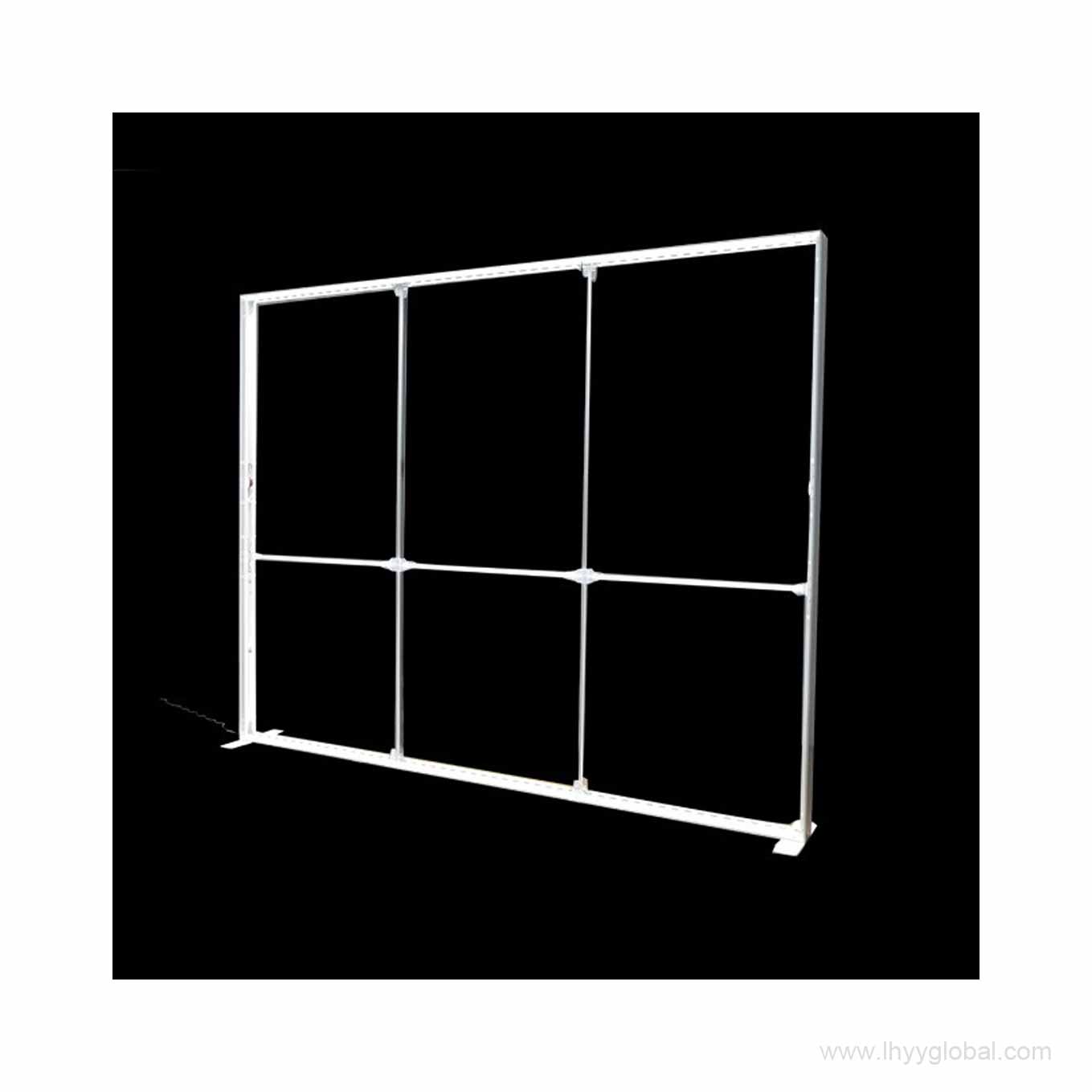

- Modular 1-Meter Architecture: Frame sections can be planned for approximately 1m to 6m wide backwalls and booth layouts. The required number of sections, connectors, feet, graphics, and packages varies by configuration.

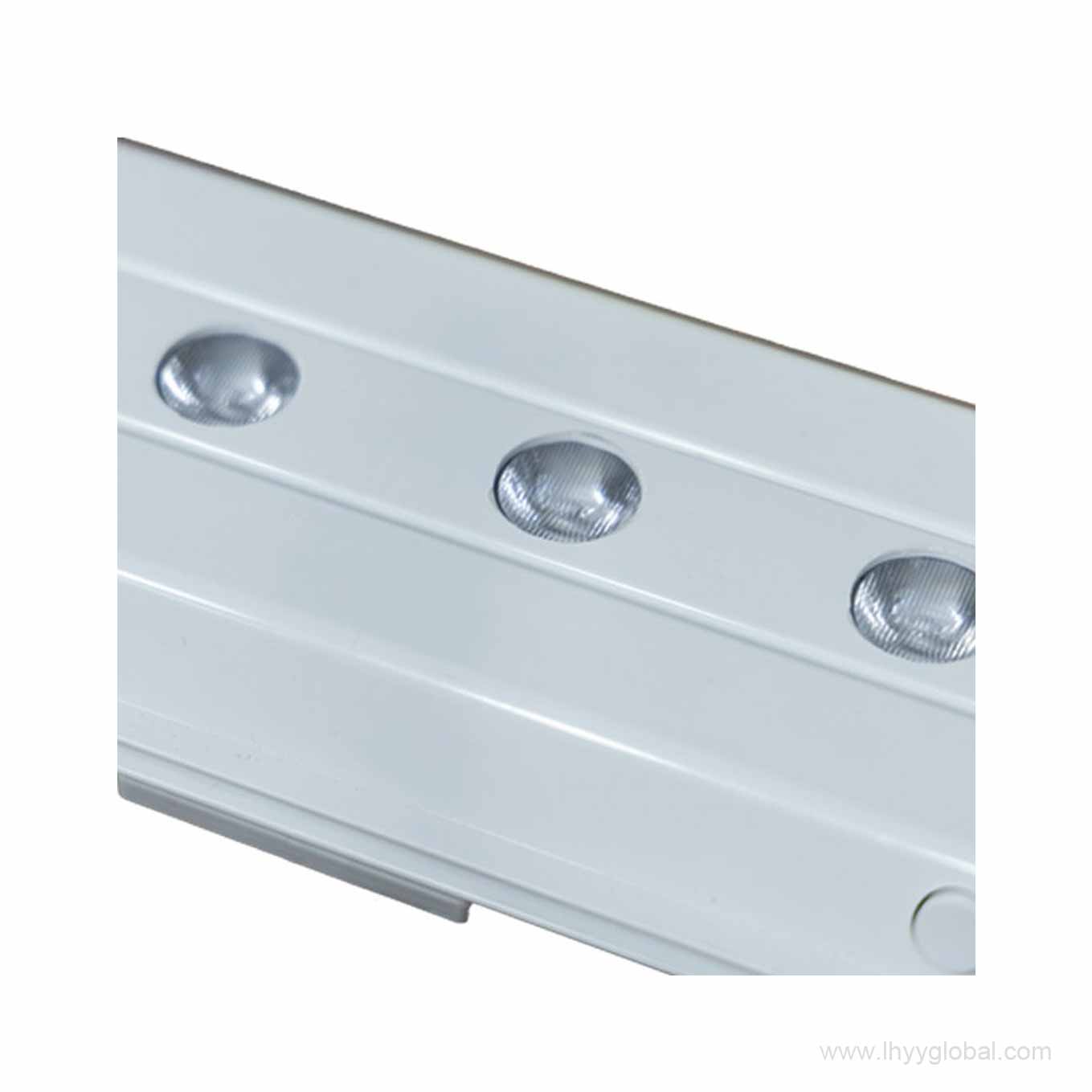

- Integrated LED Backlighting: Internal LED lighting helps custom SEG graphics remain visible in busy exhibition halls and branded event environments.
- Custom SEG Fabric Graphics: Full-color fabric graphics are finished with silicone edge strips that fit into the frame channels for a clean, tensioned presentation.

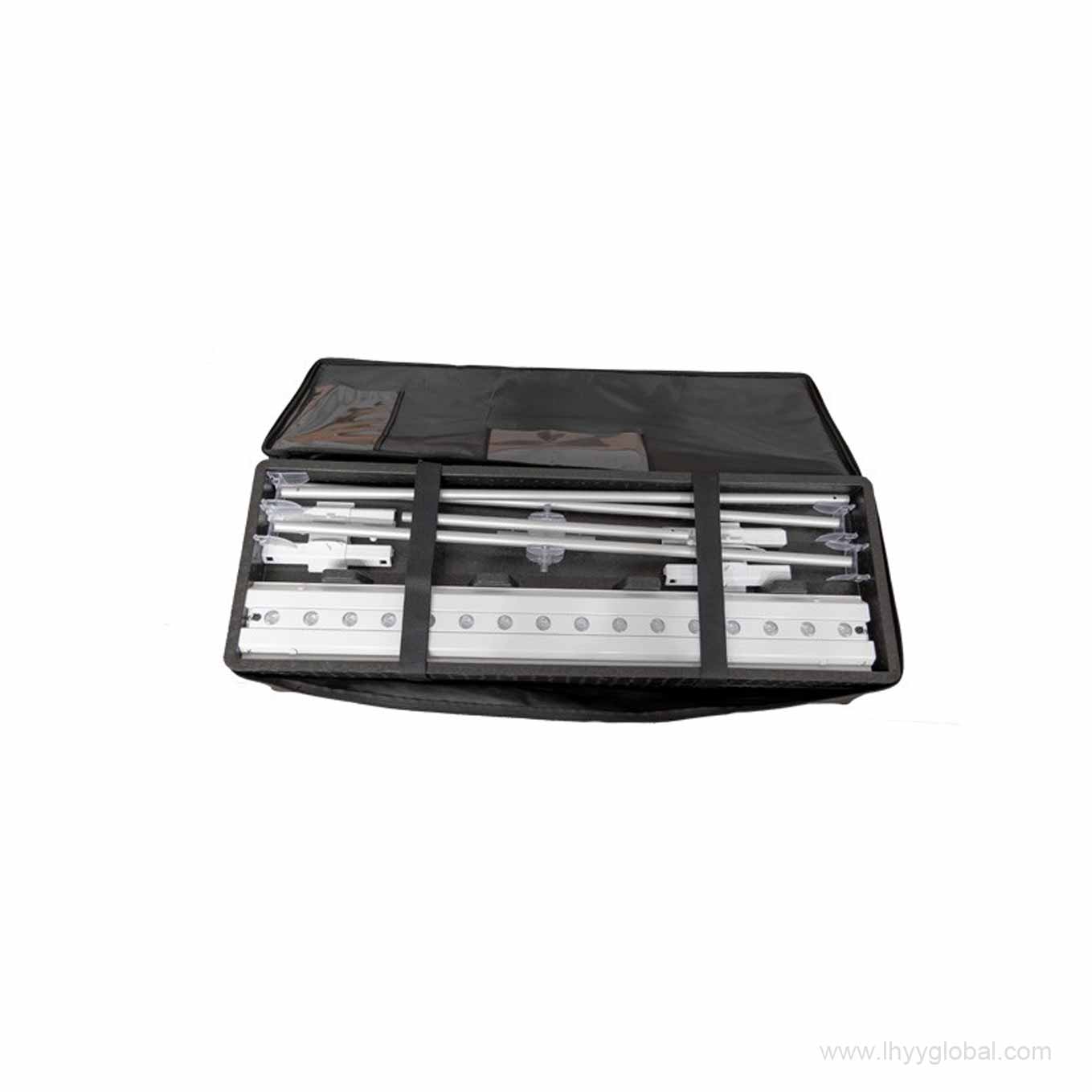

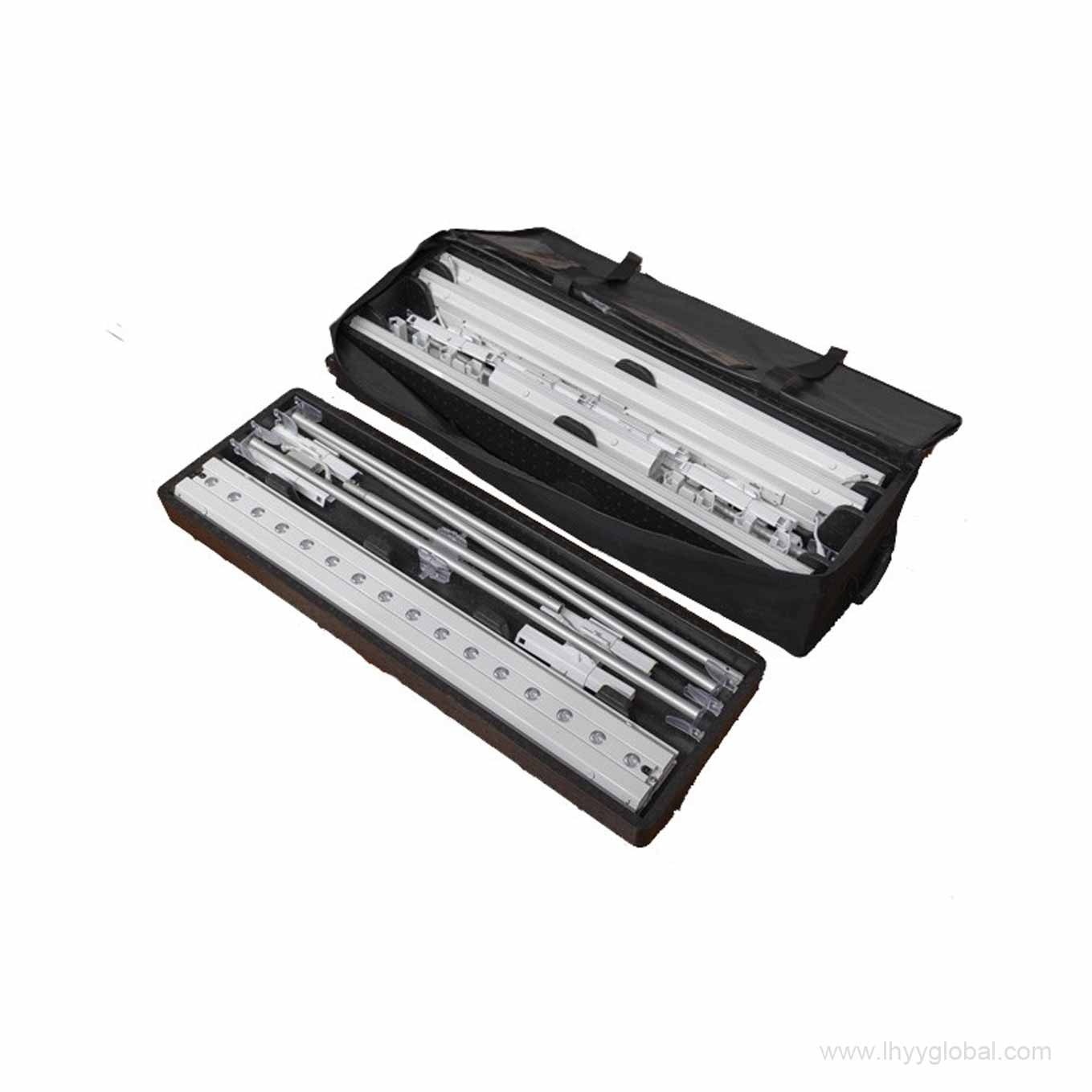

- Protective Transport Packaging: EPP protective packaging and wheeled transport bags are available according to the selected frame configuration.
Modular Booth Planning
The modular structure allows corporate event teams to plan different backwall widths and booth arrangements around a common frame system. A larger layout requires the corresponding frame sections, connectors, feet, lighting components, graphics, and transport cases; it should not be assumed that every width uses exactly the same component set.
Technical Specifications
| Specification | Current Product Configuration |
|---|---|
| Product Type | Modular SEG LED Lightbox Display System |
| Frame Depth | 120mm |
| Frame Material | Aluminum alloy |
| Graphic System | Custom-printed fabric graphics with silicone edge strips |
| Lighting | Integrated LED backlighting |
| Frame Connection | Tool-free quick-lock connectors and recessed connection hardware |
| Available Layout Range | Approximately 1m to 6m wide modular configurations |
| Reference Height | Approximately 2m for the current standard backwall configurations |
| Packaging | EPP protective packaging and wheeled transport bag; exact package count depends on configuration |
| Customization | Graphic artwork, frame finish or color, booth width, layout, electrical configuration, and packaging |
| Recommended Applications | Trade shows, exhibitions, scientific conferences, product launches, distributor meetings, and corporate events |
Standard Layout Reference
| Configuration | Reference Display Size | Quotation Requirement |
|---|---|---|
| 1m Backwall | Approximately 1000 × 2000mm | Confirm graphics, lighting, accessories, and destination |
| 2m Backwall | Approximately 2000 × 2000mm | Confirm graphics, lighting, accessories, and destination |
| 3m Backwall | Approximately 3000 × 2000mm | Confirm graphics, lighting, accessories, and destination |
| 4m Backwall | Approximately 4000 × 2000mm | Multi-package shipping plan required |
| 5m Backwall | Approximately 5000 × 2000mm | Custom component and shipping plan required |
| 6m Backwall | Approximately 6000 × 2000mm | Multi-package shipping plan required |
Reference dimensions describe straight backwall configurations. Final overall dimensions may vary with corner connectors, sidewalls, feet, counters, storage areas, or custom booth architecture.
Packaging and International Shipping
The system can be packed in protective EPP cases and wheeled transport bags to support repeated event use and international shipping. Packed dimensions, package quantity, gross weight, freight method, and delivery cost are calculated for the final booth configuration rather than represented by one universal package.
Customization Options
- Custom corporate artwork and full-color SEG graphics
- Custom backwall width and booth layout
- Frame finish or color options
- Destination-specific electrical and plug configuration
- Protective transport packaging
- Multi-unit programs for exhibitions, distributors, and event teams
Information Required for a Quote
- Required backwall or booth dimensions
- Preferred layout or reference drawing
- Single-sided or double-sided graphic requirement
- Event location and required plug type
- Order quantity
- Delivery destination and postal code
- Required delivery or event date
- Artwork files or corporate brand guidelines
Frequently Asked Questions
Q: Does the frame require installation tools?
A: The main frame is designed around tool-free quick-lock connections. The exact installation process depends on the selected layout, included accessories, and local venue requirements.
Q: Can the system be used for different booth widths?
A: Yes. Modular frame sections can be planned for multiple widths. Each configuration must include the correct number of frame sections, connectors, feet, lighting components, graphics, and transport cases.
Q: Is every 1m to 6m configuration included in one package?
A: No. The system is modular, but the component quantity and package count increase with the required booth width and layout. The quotation will list the exact included components.
Q: Are the printed graphics included?
A: Graphics can be included in the custom quotation. Pricing depends on the number of panels, finished dimensions, printing requirements, and whether additional replacement graphic sets are requested.
Q: How long does assembly take?
A: Tool-free connections are intended to simplify setup. Actual assembly time varies according to booth size, layout complexity, installer experience, and venue conditions.
Q: Can this system be used outdoors?
A: Outdoor suitability should not be assumed from the standard exhibition configuration. Please provide the intended environment so that structural, weather, electrical, and anchoring requirements can be reviewed separately.
Q: What information is needed before production?
A: LHYY will confirm the approved layout, final artwork, graphic dimensions, electrical configuration, included accessories, packaging plan, quantity, delivery destination, and production schedule before manufacturing.
Request a Custom SEG Lightbox Quote
Send LHYY your booth dimensions, layout reference, artwork, quantity, destination, and required delivery date. Our team will review the configuration and prepare a project-specific quotation covering the frame, graphics, lighting, accessories, packaging, and shipping requirements.
